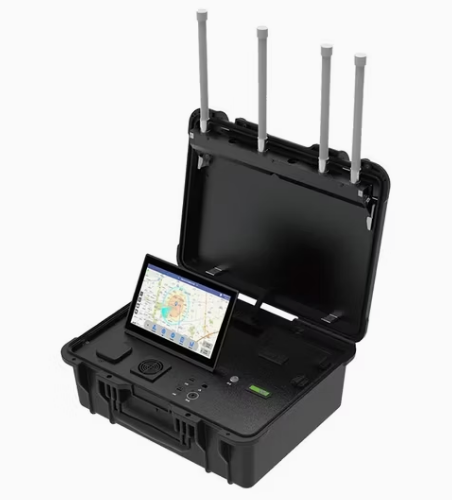

Full-Frequency Sentinel System: Passive Detection & GPS/Link Jamming
In recent years, the civilian drone market has developed rapidly. With the large-scale research and development and production of drone manufacturers, the popularity of civilian drones has become higher and higher. However, domestic drones, especially "black flying" The supervision of UAVs is still in the development stage. At present, it is known that there have been many incidents of UAVs illegally flying, taking pictures, and delivering illegal items in key areas and surrounding areas. In response to such low-altitude high-security needs, we launched a complete set of solutions for "detection, tracking, rejection and jammer".
Main technical parameters of full-band detection equipment:
| Categorization | Descriptive | Norm | Note | |
| Detection | Sizes | ≤φ610mm (diameter) × 440mm (height) | ||
| Main body weight | ≤16kg | |||
| Power Consumption | ≤120W | |||
| Equipment type | Portable, Fixed, Vehicle-mounted | |||
| Positioning ability | Portable devices are fitted with a GPS module by default, and the device has the ability to locate itself. | Note portable device when ordering | ||
| Detection performance | Antenna indicators | Frequency range | LF antenna: 300-2000MHz | |
| HF antenna: 2000-6000MHz | ||||
| Typical Frequency Point antenna gain | 5.8GHz: 9.0dBi | |||
| 5.2GHz: 10.7dBi | ||||
| 2.45GHz: 9.6dBi | ||||
| 1.4GHz: 8.0dBi | ||||
| 900MHz: 5.5dBi | ||||
| 433MHz: 0.9dBi | ||||
| Detection distance | >5km (typical suburban environment) | |||
| Direction finding accuracy | ≤ 3° (root mean square) | |||
| Detection height | ≥1000m | |||
| Detection range | Horizontal 360° omni-directional | |||
| Detected signal type | UAV digital transmission signal, UAV remote control signal, WIFI system drone signal, DVBS system drone | |||
| Types of detection drones | The vast majority of conventional consumer drones, some unconventional drones, some fixed-wing drones, and some traversers | |||
| Receiver sensitivity | ≤-115dBm | |||
| Replacement (parts) | Power supply | AC 220V 50/60Hz to DC 24V | ||
| External interface | Power connector | 3-pole aviation plug | ||
| Network interface | Gigabit Ethernet Interface | |||
| Other interfaces | USB | |||
Environmental adaptation |
Protection class | IP66 | ||
| Operating temperature | -40~65ºC | |||
| Storage temperature | -40~70ºC | |||
| Operating humidity | RH<95% | |||
| Vibration condition | <=0.1g/(10Hz~100Hz) | |||
Main technical parameters of full-band jamming equipment:
| Categorization | Descriptive | Norm | Note | |
| Overall | Sizes | 470mm x 400mm x 170mm (excluding antenna height) | ||
| Main body weight | ≤20kg | |||
| Power Consumption | ≤1600W | |||
| Equipment type | Portable, fixed | |||
| Interference Performance | Antenna indicators | Frequency range | UHF band antenna: 300-1000MHz | |
| L-band antenna: 1000-3000MHz | ||||
| S-band antenna: 2300-4000MHz | ||||
| C-band antenna: 4000-6000MHz | ||||
| Typical frequency antenna gain | 5.8GHz: 11dBi | |||
| 5.2GHz: 10dBi | ||||
| 2.4GHz: 10dBi | ||||
| 1.5GHz: 6dBi | ||||
| 900MHz: 5dBi | ||||
| Single power amplifier module power | UHF band: 45.5dBm±1dB | |||
| L-band: 45.5dBm±1dB | ||||
| S-band: 49.5dBm±1dB | ||||
| C-band: 48.5dBm±2dB | ||||
| Interference distance | >3km (UAV radiation power:0.1W; typical model:DJI Mavic 2 series) |
|||
| Interference angle | Pitch ±15° & Horizontal ±15° (C-band) Pitch ± 30° & Horizontal ± 30° (S/L band) |
|||
| Replacement (parts) | Power supply | AC220V 50/60Hz to DC36V | ||
| PTZ | Horizontal angle range 0~360°, speed ≥60°/s; Pitch angle range -15~75°, speed ≥20°/s |
|||
| External interface | Power connector | 19-pole flight plug | ||
| Data interface | Network port RJ45 connector | |||
| Protocol interface | TCP | |||
Environmental adaptation |
Protection class | IP65 | ||
| Operating temperature | -40~60ºC | |||
| Storage temperature | -40~70ºC | |||
| Operating humidity | RH<95% | |||
| Vibration condition | <=0.1g/(10Hz~100Hz) | |||
|
|
